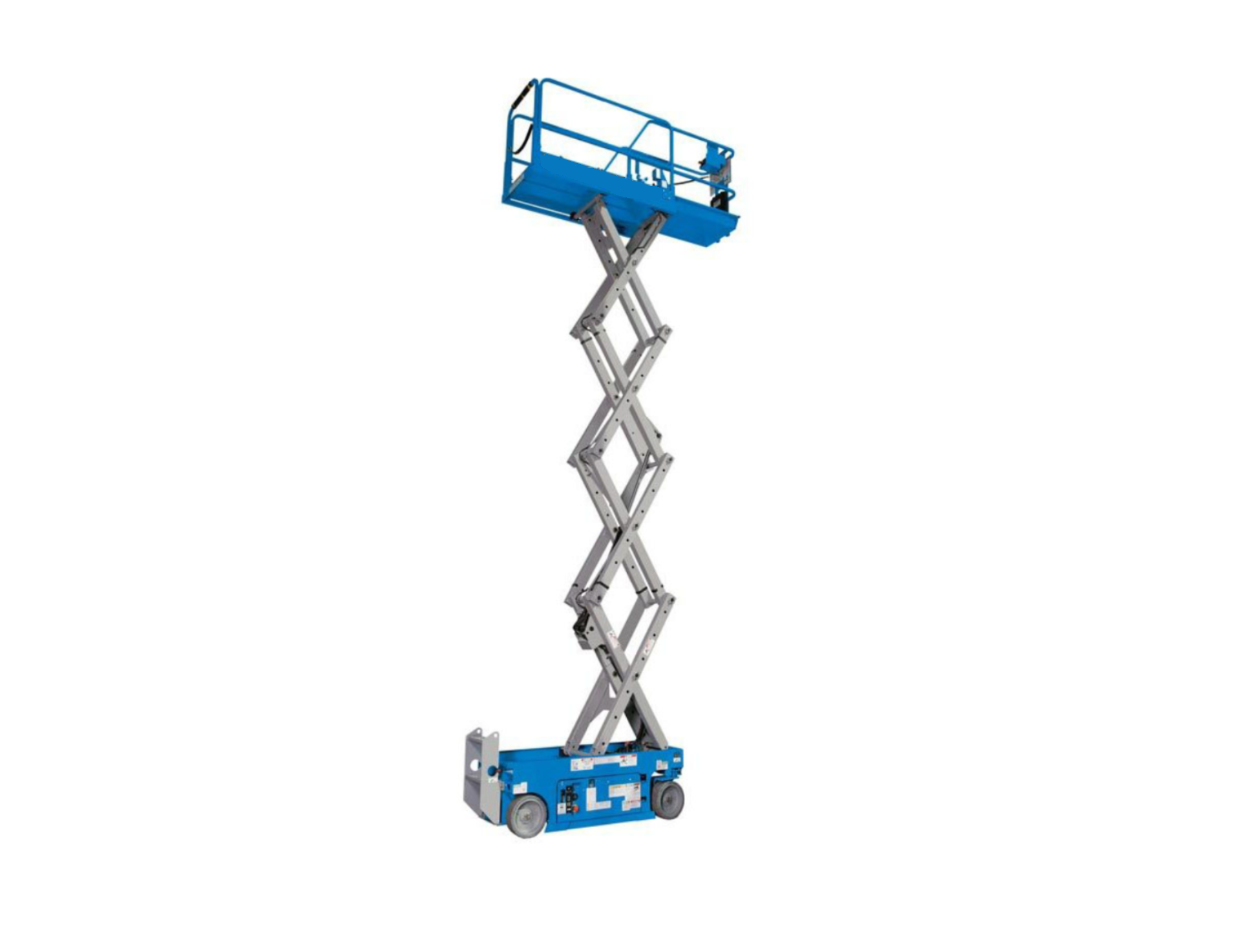

Self-Propelled Scissor Lift

Models: DS-608





Maximum Working height

52.49ft • 16m

Platform Leanth

6.88ft • 2.1m

Ground Clearence

2.78ft • 0.85m




Overview
Features / Advantages
Documents

Description

Our Scissor Lift is a highly efficient and versatile piece of equipment designed to provide safe and reliable access for work at various heights. Here are some key features of their Scissor Lift:

  • Functionality: The Scissor Lift is designed to lift personnel and equipment vertically to different working heights, making it ideal for maintenance, construction, and installation tasks.
  • Safety: Equipped with advanced safety features such as guardrails, emergency stop buttons, and non-slip platforms, ensuring the safety of operators.
  • Mobility: These lifts are designed to be mobile and easy to maneuver in tight spaces, with options for both indoor and outdoor use.
  • Durability: Built with high-quality materials, the Scissor Lift is robust and durable, capable of withstanding harsh working environments.
  • Ease of Use: User-friendly controls and ergonomic design make it simple to operate, reducing fatigue and increasing productivity.

Measurements

Maximum Platform Height

14m

Max working height

16m

Lowered Platform Height

1.2m

Platform Width

0.8m

Extension Deck

0.9m

Vehicle Dimensions

Height: 2.2m, Length: 2.15m

Ground Clearence

99mm

Platform Length

With Extension: 3m, Without Extension: 2.1m

Productivity

Maximum Capacity

2 People

Lift Capacity

350kg

Extension Desk capacity

125kg

Drive Speed

2.5kmph

Turning Radius - Outside

2.2m

Raise / Lower Height

30 / 35

Tyres (Solid Non-Making)

323 X 100

Platform Length

With Extension: 3m, Without Extension: 2.1m

Power

Power Source

24V DC (Four 6V 225Ah Batteries)

Hvdraulic Capacity

20L (5.2 gal)

Weight

1600kg

Contain will shown soon...

Documents

File: SCISSOR LIFTS BROCHURE - 2.pdf
(PDF File)
